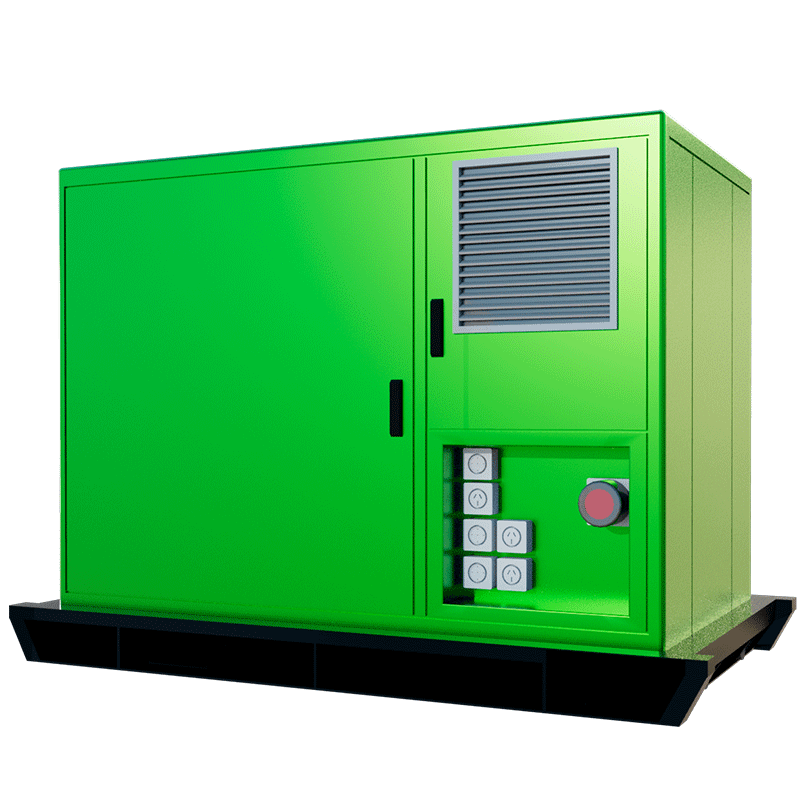

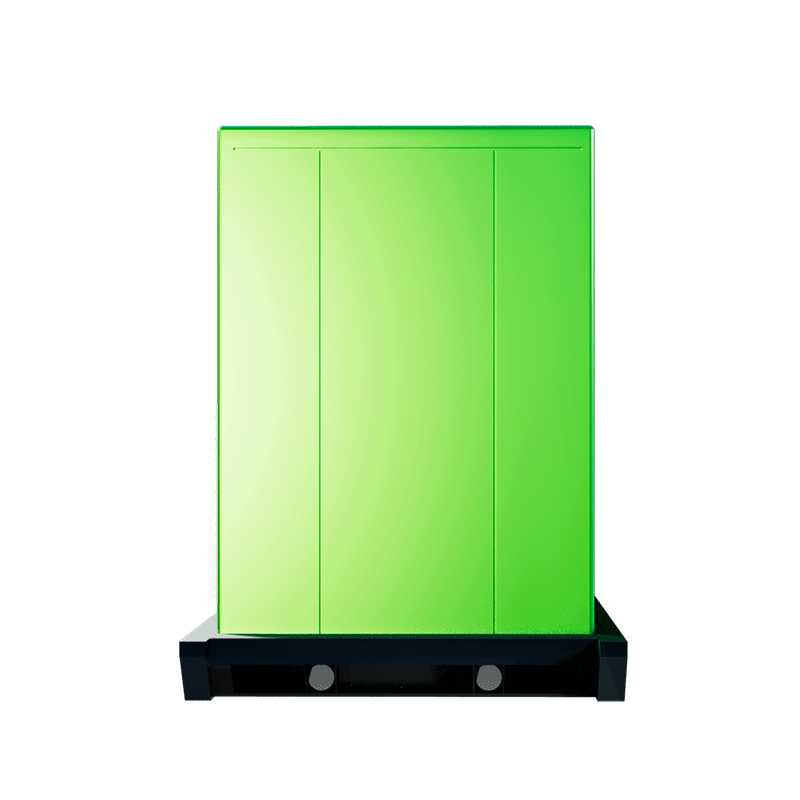

Customized hybrid systems are good partners with solar energy and generator set.
Model :
LH-HBD100PPRP kW/kVA :
100ESP kW/kVA :
110Engine :
200.7kwh battery capacityCE/ISO9001 Certification
MOQ: 1 SET
Applications
Off- grid Energy Pilot, Construction sites, parking and outdoor spaces, road construction and maintenance, mining and remote areas.
Competitive Advantage
Customized services，10 years of R&D experience, Positive feedback from domestic and foreign clients.
Specifications
| Data details: | |
| Rated Power(AC Output) | 100KW |
| Rated Voltage/Phase | 400V/3P |
| Frequency | 50HZ |
| AC connection | 3P4W |
| Battery Cluster Voltage | 716.8V |
| Battery Cluster Voltage Range | 627.2~806.4V |
| BESS Engery@25℃ | 200.7KWH |
| Battery Pack Capacity | 280Ah |
| Pack Engery@25℃ | 14.336KWH |
| Pack Qty | 14pcs |
| Cycle life@90% DOD | 6000 times |
| PCS Model-off-Grid | PWS1-100K-CN |
| PCS Rated Power | 100KW |
| Battery Voltage Range | 500~850VDC |
| PCS Qty | 1pcs |
| Control system | Local EMS(Remote for option) |
| Cooling System | HVAC |
| Fire fighting System | Aerosol(CE) |
| Operating Temp | -20~50℃(＞45℃ derating) |
| Altitude | ≤3000m(＞2000m derating) |
| Dimensions(L*W*H) | 2200*1250*2250 |
| The loading capacity | 4units/20GP,9units/40HQ |
| Weight | 2.9t |
