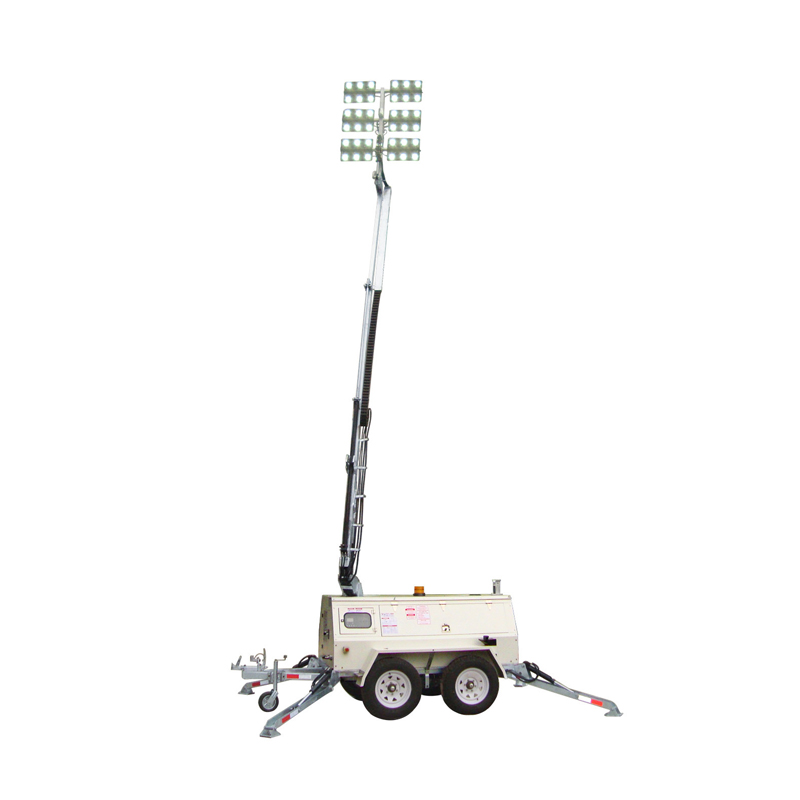

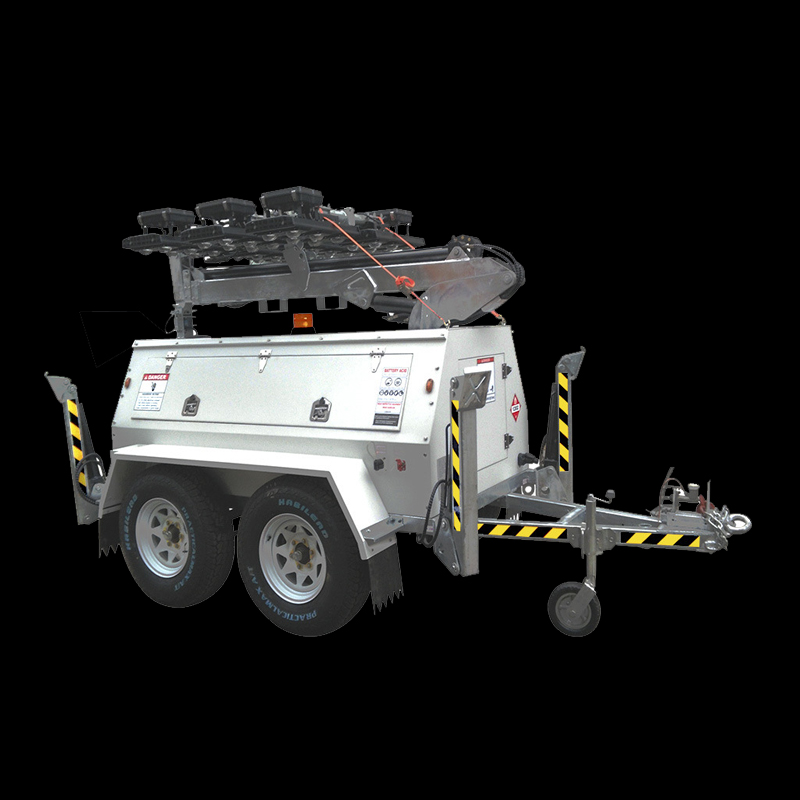

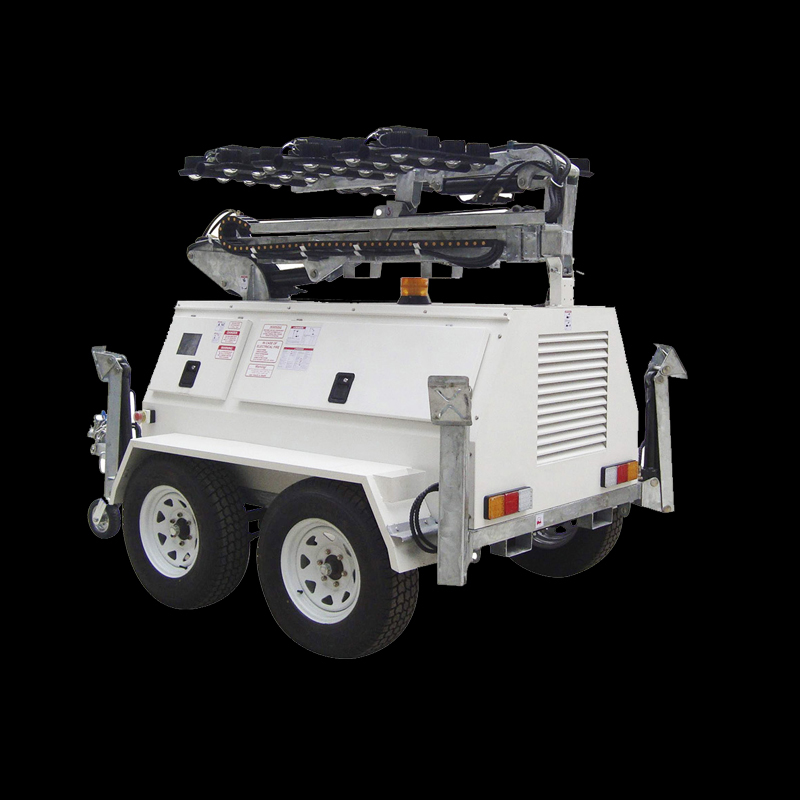

The 12m Trailer-Mounted LED Floodlight Tower powered by Perkins/Kubota engines is a highly efficient lighting solution for outdoor and industrial applications. Featuring durable LED lights, this portable unit offers long-lasting, energy-efficient illumination for construction sites, mining operations, and emergency lighting needs. Easy to transport and operate.
Model :
KLT-10000PRP kW/kVA :
9KVA@50HZ / 10KVA@60HZESP kW/kVA :
10KVA@50HZ / 11KVA@60HZEngine :
KubotaV1505Fule cons L/H(100%) :
3.3 / 3.5
CE/ISO9001 Certification
MOQ: 1 SET
Competitive Advantage
Data details: | |
Brand/Model | KLT-10000 |
Type/Lamps (no.*w) | MH - 16*400W |
Genset Output (kva/kw) | 9KVA@50HZ / 10KVA@60HZ |
Fuel tank Capacity(L) | 100 |
Fuel consumption(L/H) | 3.3 / 3.5 @100% load |
Mast operating mode | Foldable Hydraulic MAST |
Towing Type | Ring or Ball hitch |
Loading44 | 2units in 20'GP/4units in 40'HQ |
Engine | |
KubotaV1505 | |
Number of Cylinders/Stroke | 4 cylinders in line,Air cooled,Four stroke |
Fuel/Cooling | Diesel/water |
Output Rate(KW) | 11.1KVA@50HZ / 13.5KVA@60HZ |
Revolution(RPM) |
1500 / 1800 |
Alternator | |
Model/brand | AC LEHUI 164 |
Genset Output (kva/kw) | 9KVA@50HZ / 10KVA@60HZ |
Phase number | Single Phase |
Frequency | 50HZ/60hz |
Voltage output | AC 110V-240V |
Insulation | H 23 |
Type of bearing/Brush | Single/Brushless Self excitation |
Lighting | |
Lamp type | LED lamp |
Lamp No.*W | 16×400W |
Lumens | 1024000 |
Housing Materials | Aluminum |
Mast Tower | |
Type | Multi-Sections Telescoping mast |
Total Height | 12-15M |
Rotation | 360 Degree |
Mast Sections | Multi Sections |
Trailer and canopy | |
Outriggers | With 4 points hydraulic outriggers extended |
Wheel and Rim | 235R/16'' Dual axis wheels |
Trailer Suspension System | Steel plate spring |
Towing Type | Ring or Ball hitch |
Canopy | Rainproof with two doors access for easy maintenance. |
Fork pocket and central lift point | YES |
Auxliary sockets | customized 2pcs |
Control system | |
Controller | DSE 6120 |
Individual lamp switch on/off | YES |
Automatic dark/dawn on/off(Night Sensor) | YES |
Power plug in charger(City power charging function) | YES |
Electric | CHINT circuit breaker / Emergency Stop |
Connection protection | IP65 |
Engine shutdown protection | Low oil pressure, Hight water tempreture |
