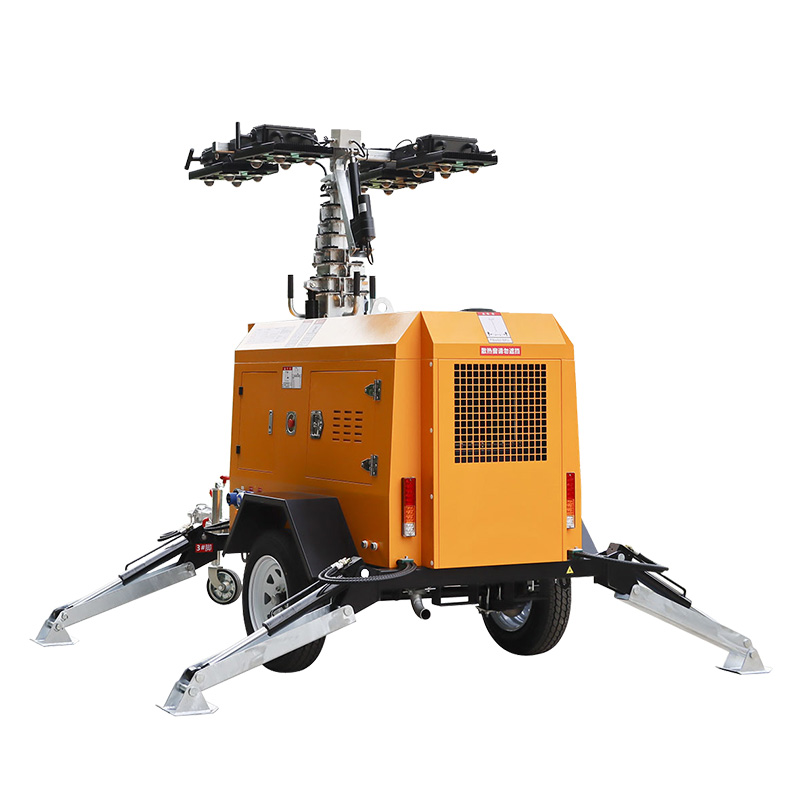

9M Hydraulic Diesel Mobile Light Tower with 350W LED Lamps and 1000W Metal Halide
This hydraulic diesel mobile light tower, with optional Yanmar/Perkins/Kubota/Kohler engine, and equipped with 350W LED and 1000W metal halide lamps, can provide powerful dual lighting, suitable for construction sites, parking lots and outdoor spaces, etc.
Model :
KLT-10000VPRP kW/kVA :
6.4 / 7.2ESP kW/kVA :
7 / 9Engine :
Perkins 403-11 /Yanmar 3tnv76-GGE /Kubota 1105Fule cons L/H(100%) :
0.6 / 1.6Our 9M hydraulic mobile light tower combines reliable diesel power with professional-grade lighting, adopts a powerful hydraulic lifting system and dual lighting technology, which can provide good lighting for construction sites, parking lots and outdoor spaces, road construction and maintenance, mining industry and remote areas.
Product Features
CE/ISO9001 Certification
MOQ: 1 SET
Applications
Construction sites, parking and outdoor spaces, road construction and maintenance, mining and remote areas.
Competitive Advantage
Customized services, 10 years of R&D experience, Positive feedback from domestic and foreign clients.
Specifications
| Data details: | |
| Brand/Model | KLT-10000 V |
| Type/Lamps (no.*w) | LED - 4*350W / MH 1000W*4 |
| Genset Output (kva/kw) | 7kav@50HZ / 9KVA@60HZ |
| Fuel tank Capacity(L) | 100 |
| Fuel consumption(L/H) | 0.6 / 1.6 |
| Mast operating mode | Vertical Hydraulic |
| Towing Type | Ring or Ball hitch |
| Loading | 10 units in 20'GP/20 units in 40'HQ |
| Engine | |
| Brand/Model | Perkins 403-11 /Yanmar 3tnv76-GGE /Kubota 1105 |
| Number of Cylinders/Stroke | 3 cylinders in line,Air cooled,Four stroke |
| Fuel/Cooling | Diesel/water |
| Output Rate（KW） | 8.4KW@50HZ / 9.5KW@60HZ |
| Revolution(RPM) |
1500 / 1800 |
| Alternator | |
| Model/brand | KAL-164 |
| Genset Output (kva/kw) | 7kav@50HZ / 9KVA@60HZ |
| Phase number | Single Phase |
| Frequency | 50HZ |
| Voltage output | AC 110V-240V |
| Insulation | H 23 |
| Type of bearing/Brush | Single/Brushless Self excitation |
| Lighting | |
| Lamp type | LED lamp / Metal Halide |
| Lamp No.*W | 4×350W / 4*1000W |
| Lumens | 210000 / 440000 |
| Housing Materials | Aluminum |
| Mast Tower | |
| Type | Hydraulic Multi-Sections Telescoping mast |
| Total Height | 8M |
| Rotation | 360 Degree |
| Mast Sections | Multi Sections |
| Trailer and canopy | |
| Outriggers | With 4 points hydraulic outriggers extended |
| Wheel and Rim | 185R/14'' or 165R/13'' |
| Trailer Suspension System | Steel plate spring |
| Towing Type | Ring or Ball hitch |
| Canopy | Rainproof with two doors access for easy maintenance. |
| Fork pocket and central lift point | YES |
| Auxliary sockets | AC 2*16A |
| Control system | |
| Controller | Smartgen 1790 |
| Individual lamp switch on/off | YES |
| Automatic dark/dawn on/off(Night Sensor) | YES |
| Power plug in charger(City power charging function) | YES |
| Electric | CHINT circuit breaker / Emergency Stop |
| Connection protection | IP65 |
| Engine shutdown protection | Low oil pressure, Hight water tempreture |
