15m Trailer-Mounted Perkins/Kubota Metal Halide Light Tower

Our diesel generator with light tower offers a 15m working height and 24kW power, providing bright illumination capable of covering an entire football field. Designed for versatility, it can be customized to meet your specific needs, ensuring reliable performance in any environment.

  • Model :

    KLT-8000
  • PRP kW/kVA :

    24KVA@50HZ / 30KVA@60HZ
  • ESP kW/kVA :

    26KVA@50HZ / 33KVA@60HZ
  • Engine :

    cummins 4B3.9-G2
  • Fule cons L/H(100%) :

    5.2 / 6.8
  • Description



 CE/ISO9001 Certification



 MOQ: 1 SET



Competitive Advantage

  1. High-Reach Illumination15m working height with 24kW diesel generator power delivers stadium-grade lighting, ensuring full football field coverage. Ideal for construction lighting, emergency floodlights, and outdoor work sites.

  2. Dual Lighting Superiority – Choose between ultra-bright metal halide or energy-efficient LED arrays, both designed for maximum illumination with a 50% longer lifespan than standard portable light towers.

  3. Rapid Deployment SystemTrailer-mounted, plug-and-play design allows for quick setup (<15 minutes), making it perfect for emergency response lighting, disaster relief, and mobile construction lighting.

  4. Industrial-Grade EndurancePerkins/Kubota turbo-diesel generator ensures 99.8% uptime, delivering 30% better fuel efficiency than competitors. Ideal for heavy-duty power solutions, remote site lighting, and long-run generator performance.

  5. All-Environment AdaptabilityIP55-rated housing withstands extreme temperatures (-40°C to 55°C), making it a rugged, all-terrain light tower for harsh industrial environments

  6. and off-grid power solutions.

  7. Smart CustomizationModular diesel light tower supports hybrid power options (solar/diesel), CCTV integration, and voltage scalability (110V-480V) for versatile mobile lighting solutions.



High-power portable light tower generator



Data details:
Brand/Model KLT-8000
Type/Lamps (no.*w) MH - 16*1000W
Genset Output (kva/kw) 24KVA@50HZ  / 30KVA@60HZ
Fuel tank Capacity(L) 100
Fuel consumption(L/H) 5.2  /  6.8  @75% load
Mast operating mode Foldable Electrical
Towing Type Ring or Ball hitch
Loading44  1units in 20'GP/2units in 40'HQ
Engine
Brand/Model
4B3.9-G2
Number of Cylinders/Stroke 4 cylinders in line,Air cooled,Four stroke
Fuel/Cooling Diesel/water
Output RateKW 30KVA@50HZ  /  37KVA@60HZ
Revolution(RPM)
1500 / 1800
Alternator
Model/brand AC leroy somer TAL A40 G
Genset Output (kva/kw) 24KVA@50HZ  / 30KVA@60HZ
Phase number Single Phase
Frequency 50HZ/60hz
Voltage output AC 110V-240V
Insulation H 23
Type of bearing/Brush Single/Brushless Self excitation
Lighting
Lamp type LED lamp / Metal Halide
Lamp No.*W 16×1000W
Lumens 2560000 / 1760000
Housing Materials Aluminum

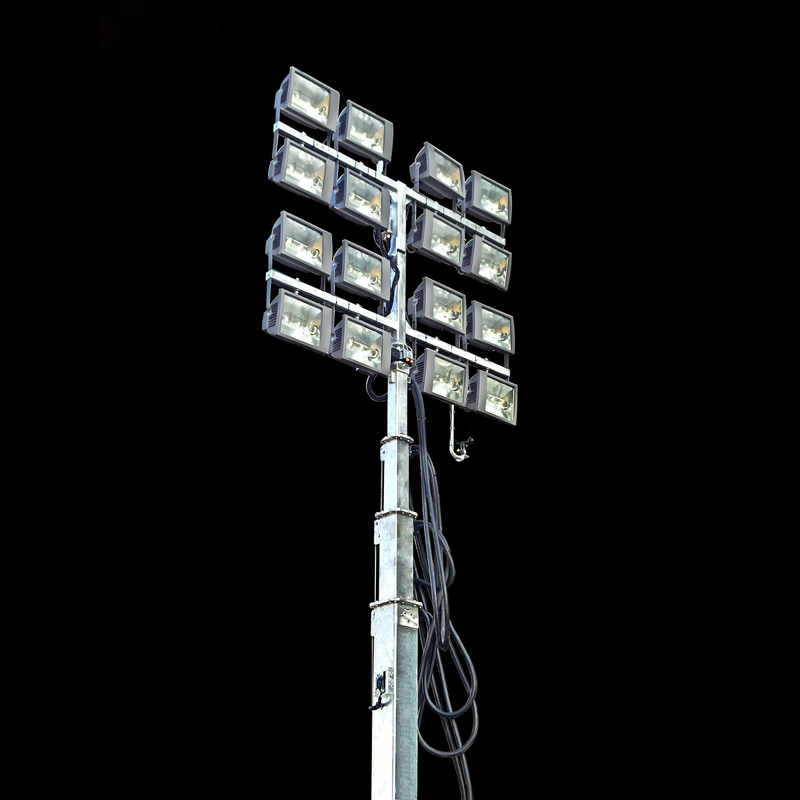

Mast Tower
Type Multi-Sections Telescoping mast
Total Height 12-15M
Rotation 360 Degree
Mast Sections Multi Sections
Trailer and canopy
Outriggers  With 4 points hydraulic outriggers extended
Wheel and Rim 235/70R16   RS23
Trailer Suspension System  Steel plate spring
Towing Type Ring or Ball hitch
Canopy Rainproof with two doors access for easy maintenance.
Fork pocket and central lift point YES
Auxliary sockets customized 2pcs
Control system

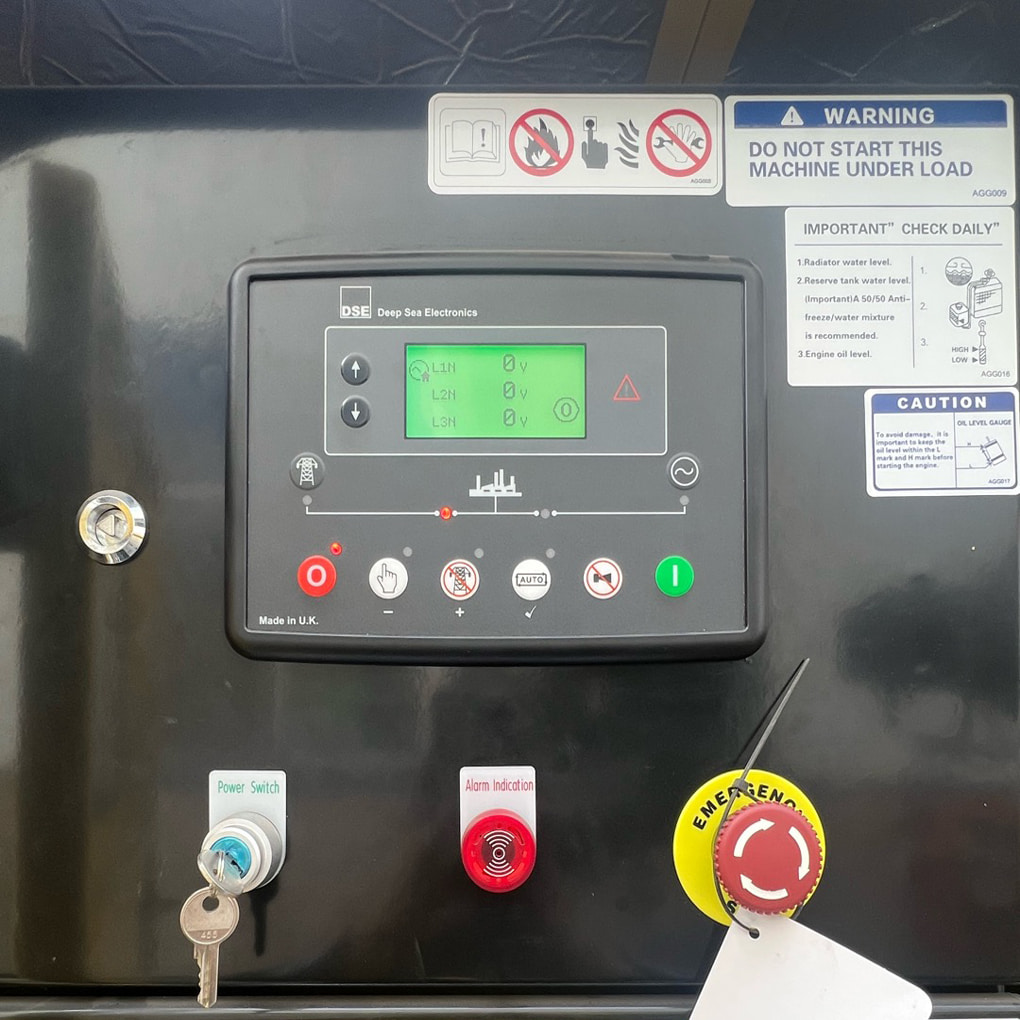

Controller DSE 6120
Individual lamp switch on/off YES
Automatic dark/dawn on/off(Night Sensor) YES
Power plug in charger(City power charging function) YES
Electric CHINT circuit breaker / Emergency Stop
Connection protection IP65
Engine shutdown protection Low oil pressure, Hight water tempreture
