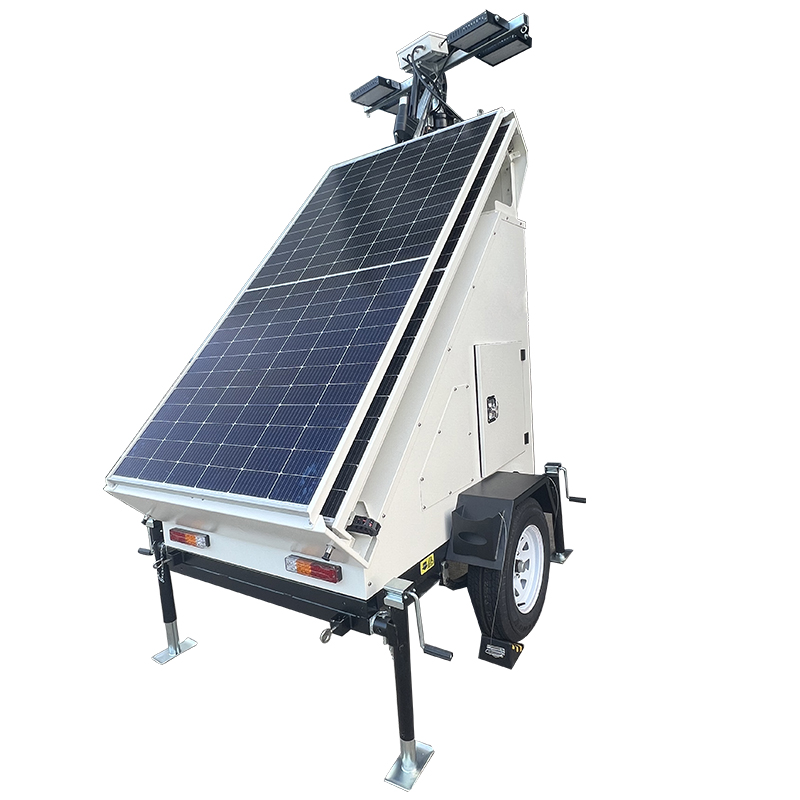

Lithium Battery Customized Solar light tower 600W LED lamps with skid

Solar light tower can be customized.AGM,GEL Battery are optional

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

CE/ISO9001 Certification

MOQ: 1 SET

Applications

Construction sites, parking and outdoor spaces, road construction and maintenance, mining and remote areas.

Competitive Advantage

Customized services，10 years of R&D experience, Positive feedback from domestic and foreign clients.

Specifications

Data details:
Type/Lamps (no.*w)	LED/4*150W
Running time (only lights) Hr	15
Mast operating mode	Manual /Vertical Electric
Towing Type	Ring or Ball hitch
Sound level (dBA) at 7m	0
Dimention for shipping	2200×1500×2500MM(Pack by Plastic)
Loading	4 units in 20'GP/8 units in 40'HQ
Solar panels
Total watt	3*435W(1305W)
Solar panel type	Monocrystalline silicon tempered glass
Unfold and Fold	Manual
Temperature	-20~85℃
Adjustable tilt	optional （add extra cost)
Battery
Type	lithium/GEL /AGM
Capacity	14.4KWH
Voltage	12V
No.	6
Temperature	-15~50℃
Lighting
Lamp type	LED lamp,160L/W,Rectangle
Lamp No.*W	4×150W
Lumens	96,000
Housing Materials	Aluminum

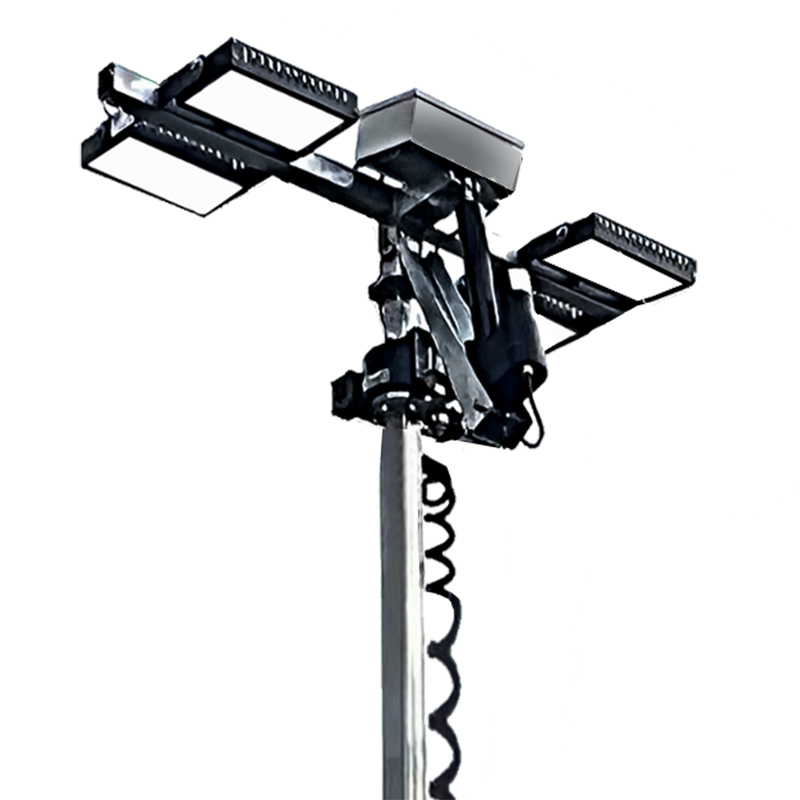

Mast Tower
Type	Multi-Sections Telescoping mast
Total Height	8M
Rotation	360 Degree
Mast Sections	Multi Sections
Operating mode	Manual/Electric Winch with selfbrake/hydraulic
Outriggers
Trailer	With 4 points manual outriggers extended and all jack down
Fork pocket and central lift point	YES
Wheel and Rim	185R/14''
Trailer Suspension System	Steel plate spring
Towing Type	Ring or Ball hitch with Retractable Drawbar
Canopy	Rainproof with two doors access for easy maintenance.
Available socket power suply	AC 1*16A

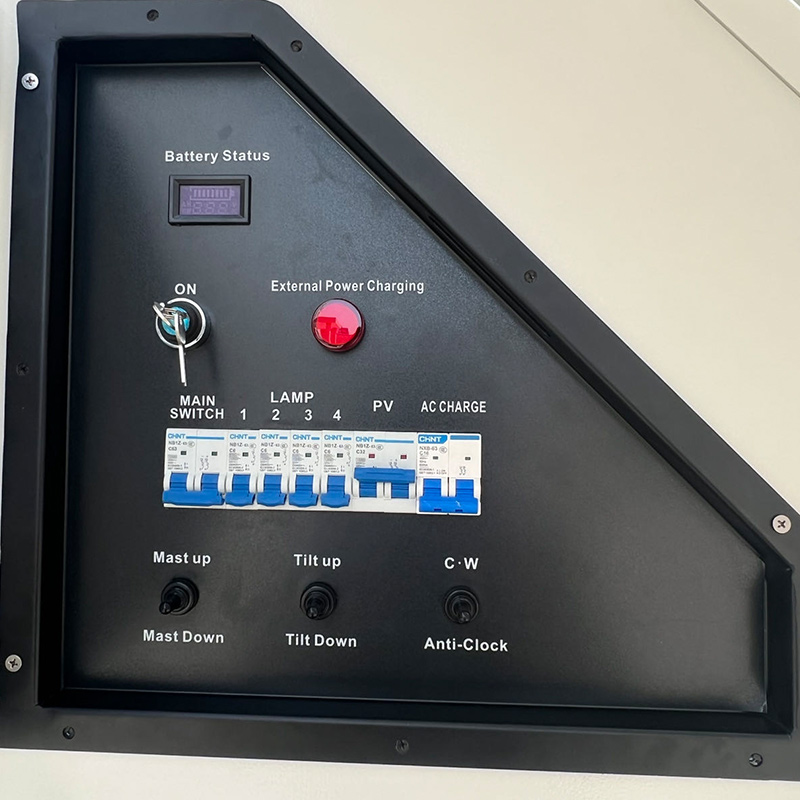

Control system
Controller	MPPT 50
Individual lamp switch on/off	YES
Automatic dark/dawn on/off(Night Sensor)	YES
Power plug in charger(City power charging function)	YES
Electric-Shutdown protection
Electric	CHINT circuit breaker / Emergency Stop
Connection protection	IP65
Optional standby generator
5kVA Portable generator set	Optional diesel,gasoline or gas(add extra cost)
GPS	YES
Motion Sensor	YES
cooling fan	YES
