Hydraulic light tower

Home Hydraulic light tower

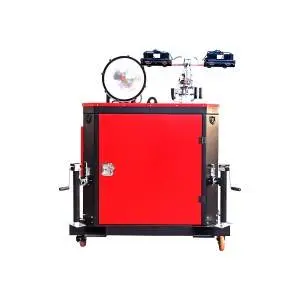

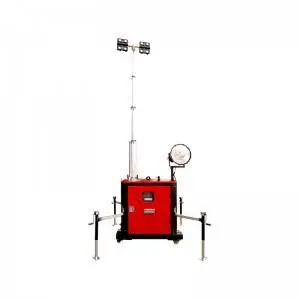

9M total height Hydraulic Mobile light tower powered by diesel engine with 4*350W LED lamps and 4*1000W Metal halide with Spotlights

1000w *4 metal halide lamps tower lights

9M total height Hydraulic Mobile light tower powered by diesel engine with 4350W LED lamps and 41000W Metal halide with Spotlights

Engine Brand Optional ：Yanmar/Perkins/Kubota/Kohler

Model :
KLT-10000V
PRP kW/kVA :
6.4 / 7.2
ESP kW/kVA :
7 / 9
Engine :
Perkins 403-11 /Yanmar 3tnv76-GGE /Kubota 1105
Fule cons L/H(100%) :
0.6 / 1.6

Inquiry now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

CE/ISO9001 Certification

MOQ: 1 SET

Applications

Construction sites, parking and outdoor spaces, road construction and maintenance, mining and remote areas.

Competitive Advantage

Customized services, 10 years of R&D experience, Positive feedback from domestic and foreign clients.

Specifications

Data details:
Brand/Model	KLT-10000 V
Type/Lamps (no.*w)	LED - 4350W / MH 1000W4
Genset Output (kva/kw)	7kav@50HZ / 9KVA@60HZ
Fuel tank Capacity(L)	100
Fuel consumption(L/H)	0.6 / 1.6
Mast operating mode	Vertical Hydraulic
Towing Type	Ring or Ball hitch
Loading	10 units in 20'GP/20 units in 40'HQ
Engine
Brand/Model	Perkins 403-11 /Yanmar 3tnv76-GGE /Kubota 1105
Number of Cylinders/Stroke	3 cylinders in line,Air cooled,Four stroke
Fuel/Cooling	Diesel/water
Output Rate（KW）	8.4KW@50HZ / 9.5KW@60HZ
Revolution(RPM)	1500 / 1800
Alternator
Model/brand	KAL-164/LEHUI
Genset Output (kva/kw)	7kav@50HZ / 9KVA@60HZ
Phase number	Single Phase
Frequency	50HZ
Voltage output	AC 110V-240V
Insulation	H 23
Type of bearing/Brush	Single/Brushless Self excitation
Lighting
Lamp type	LED lamp / Metal Halide
Lamp No.*W	4×350W / 4*1000W
Lumens	210000 / 440000
Housing Materials	Aluminum
Mast Tower
Type	Hydraulic Multi-Sections Telescoping mast
Total Height	8M
Rotation	360 Degree
Mast Sections	Multi Sections
Trailer and canopy
Outriggers	With 4 points hydraulic outriggers extended
Wheel and Rim	185R/14'' or 165R/13''
Trailer Suspension System	Steel plate spring
Towing Type	Ring or Ball hitch
Canopy	Rainproof with two doors access for easy maintenance.
Fork pocket and central lift point	YES
Auxliary sockets	AC 2*16A
Control system
Controller	LEHUI1790
Individual lamp switch on/off	YES
Automatic dark/dawn on/off(Night Sensor)	YES
Power plug in charger(City power charging function)	YES
Electric	CHINT circuit breaker / Emergency Stop
Connection protection	IP65
Engine shutdown protection	Low oil pressure, Hight water tempreture
